Customized Ferrule 125um 800um SM/MM Fiber Optic SMA Connector

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : HYG-SMA-905-02

Certification : CE RoHS FCC

Supply Ability : 100000 Piece/Pieces per Month

Packaging Details : 2000 pcs/ctn,34*33*34cm

MOQ : 10 Piece/Pieces

Price : Negotiable / Piece

Delivery Time : 3-7 working days

Type : Fiber Adapter & Connectors

No. of Fiber : 1

Use : FTTX

Product name : SMA Fiber Optic Connector

Connector : SMA 905 connector

Ferrule Type : Metal ferrule

Core : 125-700um

Material : Stainless Steel

Application : Telecommunication

Insertion Loss : IL<0.2db

Return Loss : PC>=35dB

Warranty : 3 Years

Port : shenzhen

Contact Now

Customized Ferrule 125um up to 800um SM/MM Fiber Optic SMA Connector

Product Description

The 905 and 906 series were the first fiber optic interconnectsystem to gain industry wide acceptance for military, industrial, data communications and medical appli- cations. The SMA connector family utilizes a threaded coupling nut system for mating and de-mating. Available with zirconia or stainless steel ferrules with custom hole sizes, the SMA is an excellent choice for a robust, low-cost and reliable system.

Features:

Reliable, robust and time-tested as one of the first industry standard fiber optic interfaces.
Threaded, metal coupling nut for maximum retention.
Stainless steel ferrules available in custom, precision drilled fiber holes for specialized applications.
Available with hexagonal coupling nut upon request.

Specifications:

	128µm & 144µm SMArt ferrule (zirconia, 905 series):	128µm & 144µm stainless steel ferrule:
Inser tion Loss:	< 0.8dB typical	< 2.0dB typical

Tolerances for custom, micro-drilled holes for stainless steel ferrules:

Fiber Hole Size	Tolerance
128 & 144µm	+5 / -0µm
145 to 200µm	+10 / -0µm
201 to 500µm	+5%/-0µm
500µm and higher	+25 / -0µm

Storage/Operating Temperature: -40°C to +70°C

Drawing:

Customized Ferrule 125um 800um SM/MM Fiber Optic SMA Connector

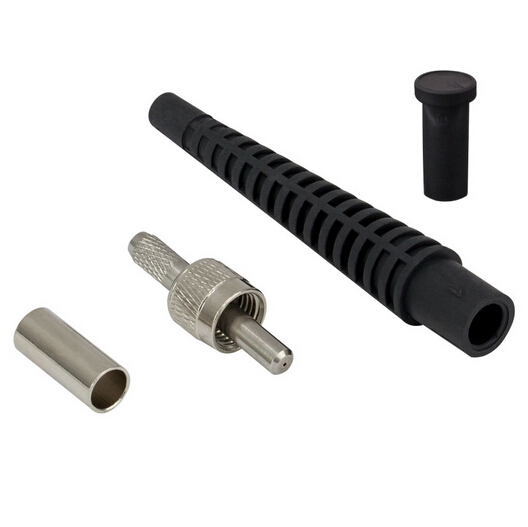

Picture:

Customized Ferrule 125um 800um SM/MM Fiber Optic SMA Connector
